Structure Series

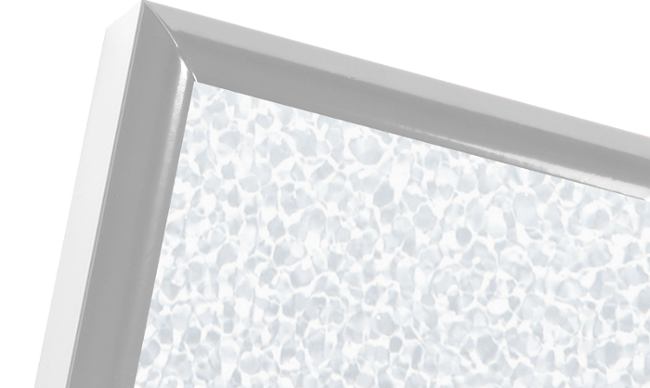

Structural glass is our classic all-rounder with its shimmering surface. No matter in which room, this panel still looks good and fits any home interior.



Technical data

Surface ESG-Glass (Safety glass)
Glass type Structure
Frame Aluminium
Voltage 230 V / 50 Hz
Supply voltage
 U~ = 205 – 240 V
Radiation temperature
 Variable between 0°C until 180°C electronically regulated
Control system
 Integrated into heating system
Operating element and room thermostat
 ISTC
Safety temperature limiting
 Over temperature guard
Remote receiver
 433,92 MHz
Standby consumption
 0,5 W
Protection IP20
Mounting

Ceiling mounting,

wall mounting,

mounting with wall mounting angle set,

mounting with base



Models 60’s series

The series with 60 cm width.

Article Format Glass color
 Frame Weight Max. power Room size*
220101 60 x 60 cm white silver about 8.6 kg 1000 W until 15 m²
220108 60 x 60 cm white white about 8.6 kg 1000 W until 15 m²
220284 60 x 60 cm white black  about 8.6 kg 1000 W until 15 m²
220286 60 x 60 cm black  silver about 8.6 kg 1000 W until 15 m²
220285 60 x 60 cm black white about 8.6 kg 1000 W until 15 m²
220111 60 x 60 cm black black about 8.6 kg 1000 W until 15 m²
220383 60 x 60 cm RAL RAL about 8.6 kg 1000 W until 15 m²
220102 60 x 90 cm white silver about 12.1 kg 1500 W until 20 m²
220109 60 x 90 cm white white about 12.1 kg 1500 W until 20 m²
220287 60 x 90 cm white black about 12.1 kg 1500 W until 20 m²
220289 60 x 90 cm black silver about 12.1 kg 1500 W until 20 m²
220288 60 x 90 cm black white about 12.1 kg 1500 W until 20 m²
220112 60 x 90 cm black black about 12.1 kg 1500 W until 20 m²
220384 60 x 90 cm RAL RAL about 12.1 kg 1500 W until 20 m²
220103 60 x 120 cm white silver about 15.6 kg 2000 W until 25 m²
220110 60 x 120 cm white white about 15.6 kg 2000 W until 25 m²
220290 60 x 120 cm white black about 15.6 kg 2000 W until 25 m²
220390 60 x 120 cm white frameless about 15.6 kg 2000 W until 25 m²
220292 60 x 120 cm black silver about 15.6 kg 2000 W until 25 m²
220291 60 x 120 cm black white about 15.6 kg 2000 W until 25 m²
220113 60 x 120 cm black black about 15.6 kg 2000 W until 25 m²
220391 60 x 120 cm black frameless about 15.6 kg 2000 W until 25 m²
220385 60 x 120 cm RAL RAL about 15.6 kg 2000 W until 25 m²
220392 60 x 120 cm RAL frameless about 15.6 kg 2000 W until 25 m²



Models 30’s series

The series with 30 cm widht.

Article Format Glass color
 Frame Weight Max. Power Room size*
220165 30 x 30 cm white silver about 2.5 kg 250 W until 3.5 m²
220166 30 x 60 cm white silver about 5.2 kg 500 W until 7 m²
220379 30 x 60 cm white white  about 5.2 kg 500 W until 7 m²
220297 30 x 60 cm white  black  about 5.2 kg 500 W until 7 m²
220299 30 x 60 cm black silver about 5.2 kg 500 W until 7 m²
220298 30 x 60 cm black white about 5.2 kg 500 W until 7 m²
220293 30 x 60 cm black  black about 5.2 kg 500 W until 7 m²
220386 30 x 60 cm RAL RAL about 5.2 kg 500 W until 7 m²
220167 30 x 90 cm white silver about 6.9 kg 750 W until 10 m²
220380 30 x 90 cm white white about 6.9 kg 750 W until 10 m²
220300 30 x 90 cm white black about 6.9 kg 750 W until 10 m²
220302 30 x 90 cm black silver about 6.9 kg 750 W until 10 m²
220301 30 x 90 cm black white about 6.9 kg 750 W until 10 m²
220294 30 x 90 cm black black about 6.9 kg 750 W until 10 m²
220387 30 x 90 cm RAL RAL about 6.9 kg 750 W until 10 m²
220168 30 x 120 cm white silver about 8.7 kg 1000 W until 15 m²
220381 30 x 120 cm white white about 8.7 kg 1000 W until 15 m²
220303 30 x 120 cm white black about 8.7 kg 1000 W until 15 m²
220305 30 x 120 cm black silver about 8.7 kg 1000 W until 15 m²
220304 30 x 120 cm black white about 8.7 kg 1000 W until 15 m²
220295 30 x 120 cm black black about 8.7 kg 1000 W until 15 m²
220388 30 x 120 cm RAL RAL about 8.7 kg 1000 W until 15 m²
220169 30 x 150 cm white silver about 10.5 kg 1250 W until 18 m²
220382 30 x 150 cm white white about 10.5 kg 1250 W until 18 m²
220306 30 x 150 cm white black about 10.5 kg 1250 W until 18 m²
220308 30 x 150 cm black silver about 10.5 kg 1250 W until 18 m²
220307 30 x 150 cm black white about 10.5 kg 1250 W until 18 m²
220296 30 x 150 cm black black about 10.5 kg 1250 W until 18 m²
220389 30 x 150 cm RAL RAL about 10.5 kg 1250 W until 18 m²



* The given values are only valid for rooms with the corresponding isolation.
